Archive Section

[Loughborough & Sheepshed Railway]
[Signal Box Diagrams]

In this section are a number of Signal Box Diagrams on ex-GCR and ex-GNR lines in Leicetershire and Nottinghamshire, and Tables of Electrical Controls

These are scans of high-quality drawings provided courtesy of Ian Harrop and Carnegie Heritage Centre, Hull. They were originally created by an unknown person. Several carry dates between 1949 and 1976 and they mainly cover a number of ex-GCR and ex-GNR signal boxes in Leicestershire and Nottinghamshire. All of the originals, except the one noted, are 375mm x 255mm.

1) Locations on the ex-Great Central Railway, from Belgrave & Birstall in Leicestershire northwards to Wilford Brick Sidings in Nottinghamshire

Belgrave & Birstall. Click here for a larger image

Quorn. Click here for a larger image

East Leake. Click here for a larger image

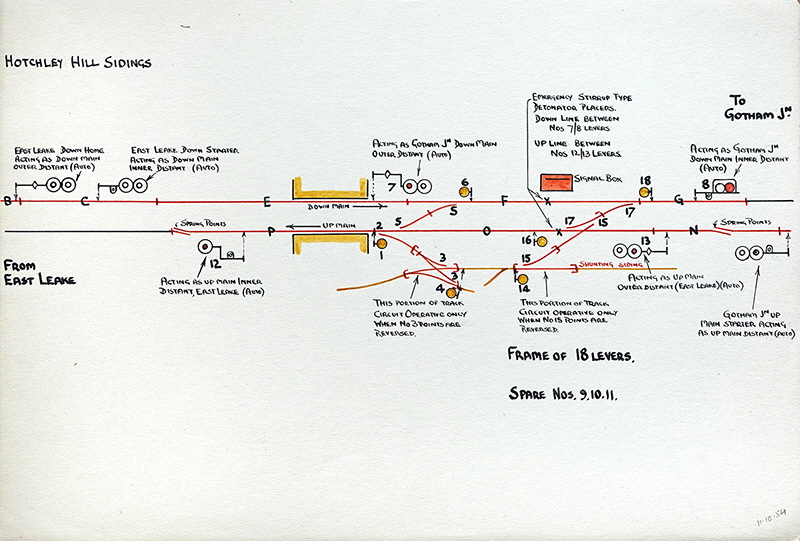

Hotchley Hill Sidings. This signal box was built in the 1940s and constructed of brick with a concrete roof and still exists. Though it was derelict and gutted it is now being fitted out again. Diagram dated 11.10.54. Click here for a larger image

Ruddington. Including the connection to the ordnance factory which was built during World War II. Click here for a larger image

Wilford Brick Sidings. This diagram carries the date 1955. Click here for a larger image

2) Diagrams of a Selection of ex-Great Northern Railway Signal Boxes in Nottinghamshire

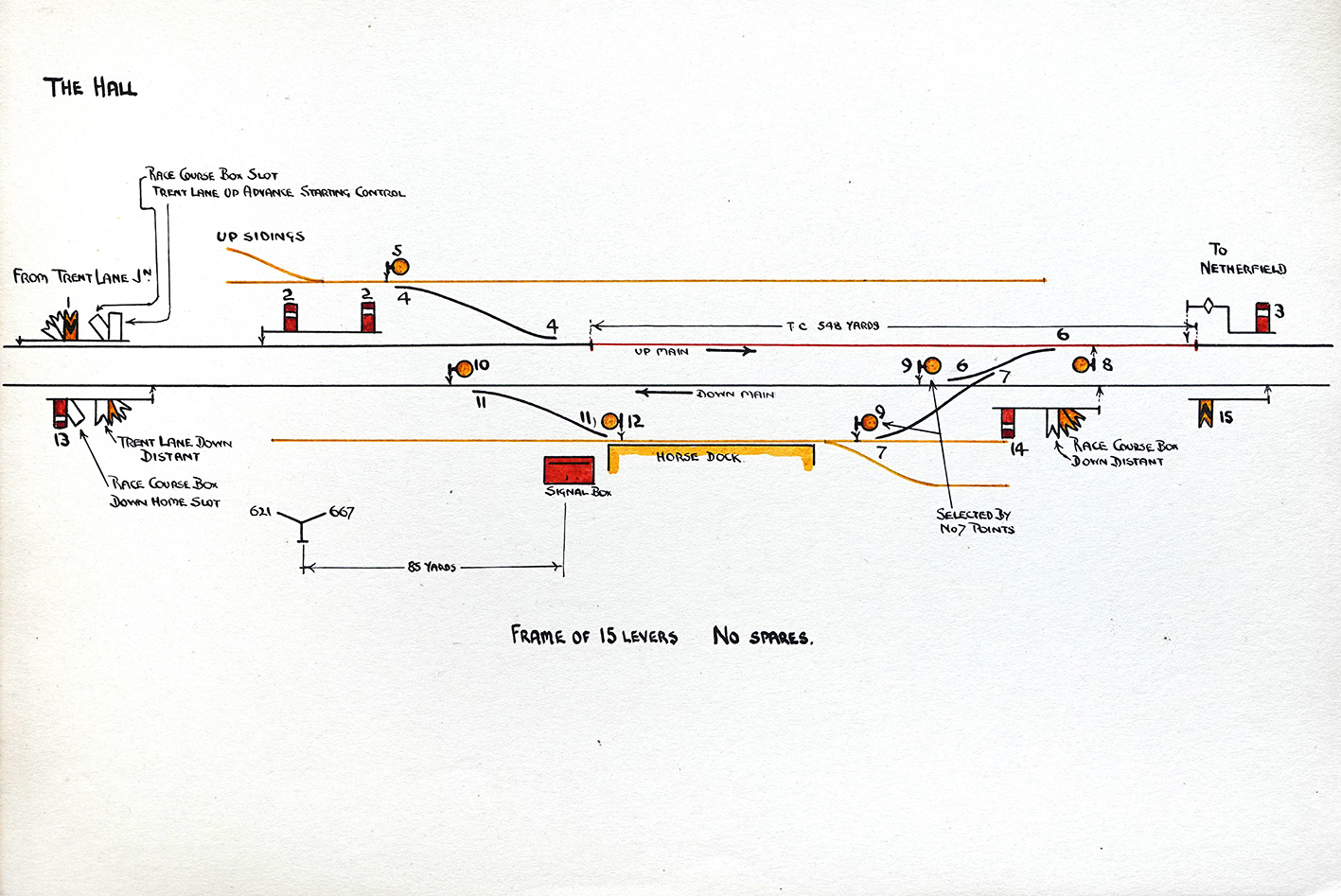

The Hall. This signal box was on the ex-GNR line east of Nottingham, near to Nottingham race course. Click here for a larger image

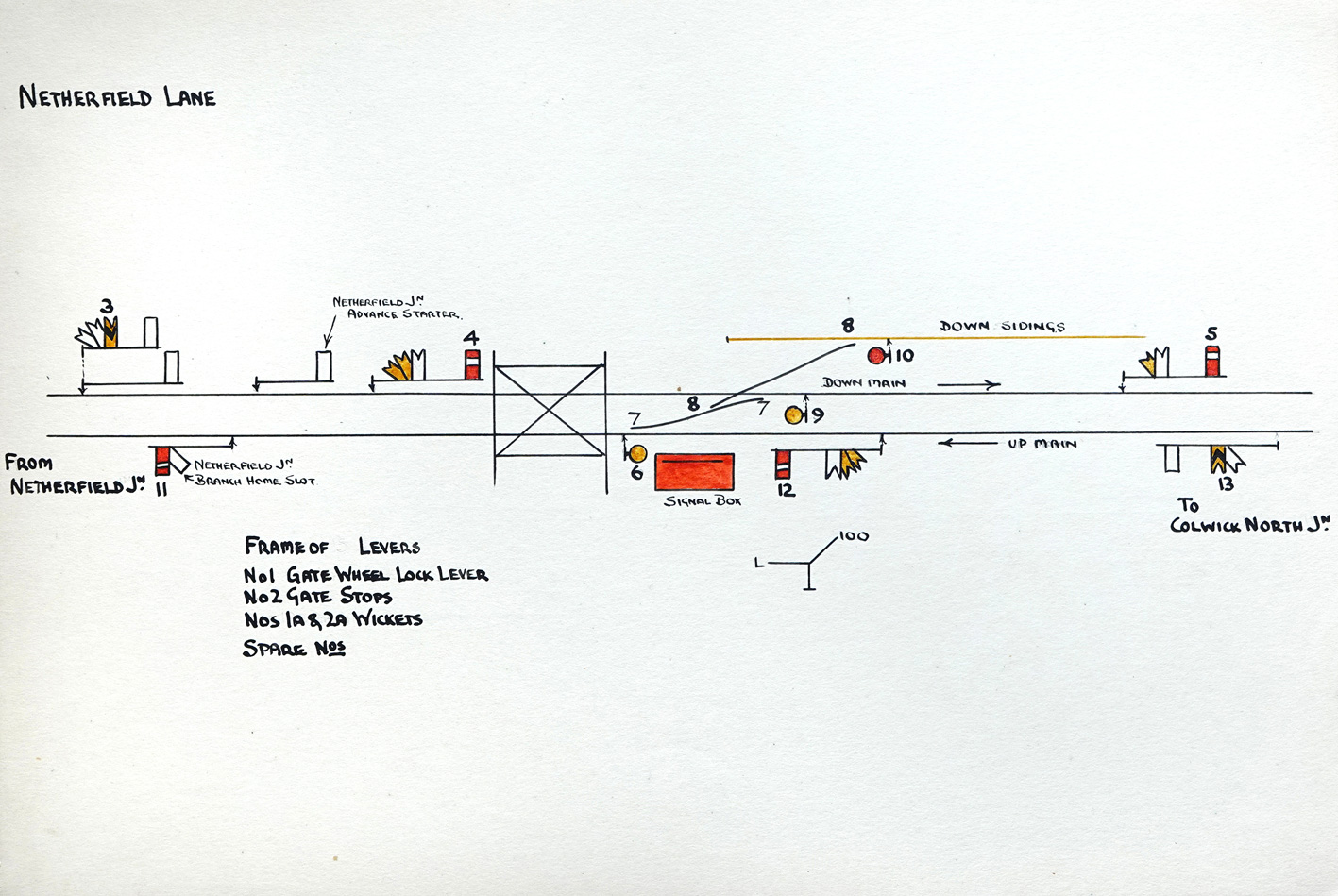

Netherfield Lane. Signal box to the west of Colwick locomotive shed and marshaling yard, on the chord leading to Gedling. Click here for a larger image

Radcliffe on Trent. Click here for a larger image

Signal Box Diagram-Bottesford West Junction

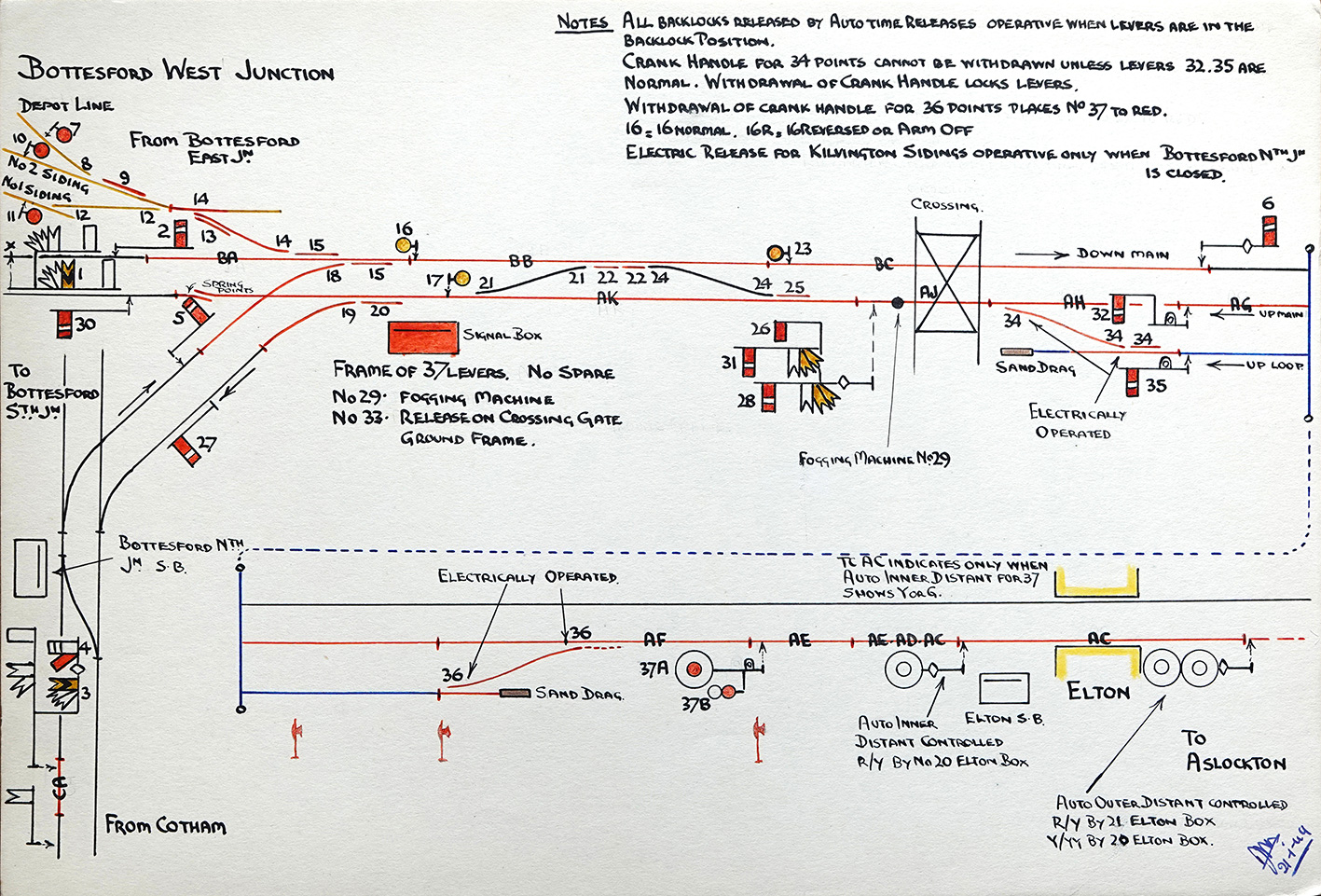

Bottesford West Junction. Carries the date 21.1.49. Click here for a larger image

Sedgebrook. This station and signal box were east of Bottesford. Pencil outline. Click here for a larger image

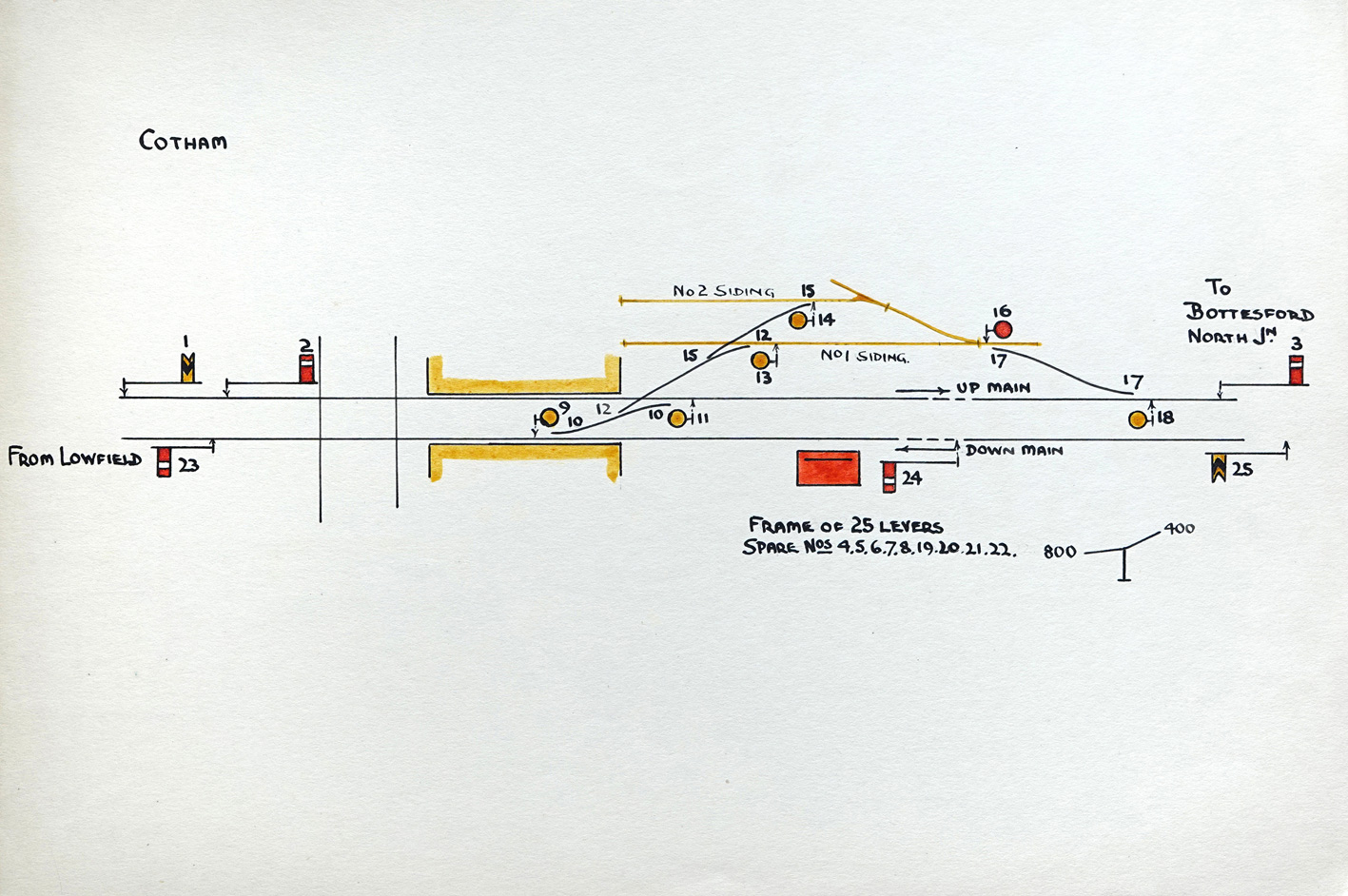

Cotham. This station and signal box were on the line from Newark to Bottesford. Click here for a larger image

Basford & Bulwell. This was on the ex-GNR Derbyshire and Staffordshire line. Click here for a larger image

Leen Valley Junction. This signal box was on the ex-GNR Derbyshire and Staffordshire line. Click here for a larger image

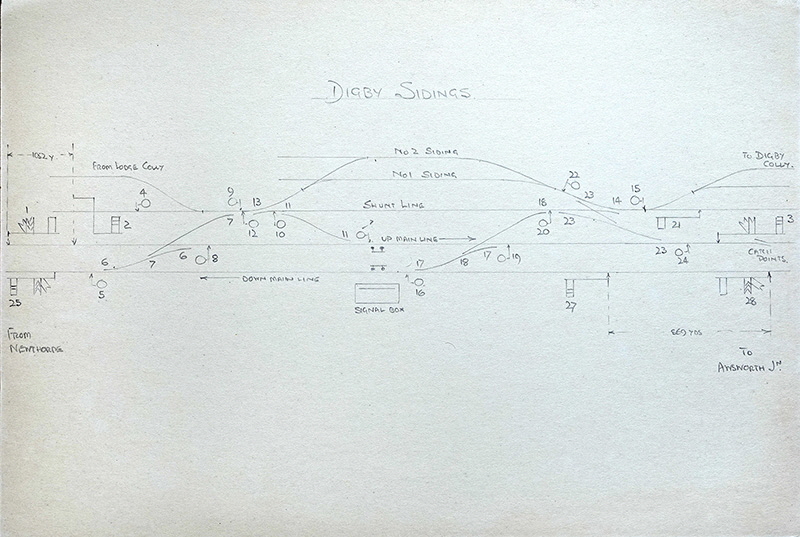

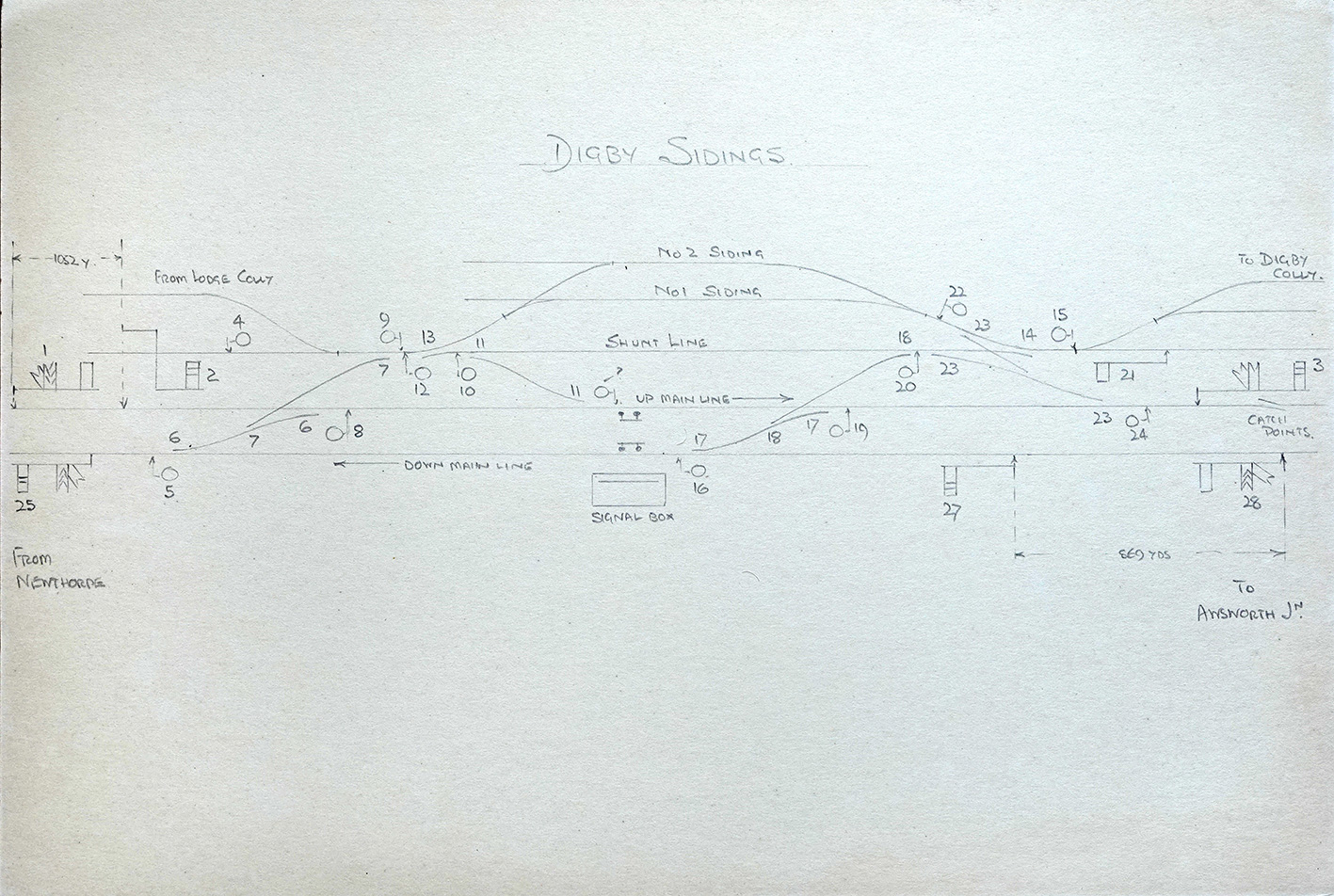

Digby Sidings. This signal box was on the ex-GNR Pinxton branch. Pencil outline. Click here for a larger image

3) Diagram of a Signal Box on the ex-GNR & LNWR Joint Line in Leicestershire

Signal Box Diagram-Melton Mowbray GNR&LNWR

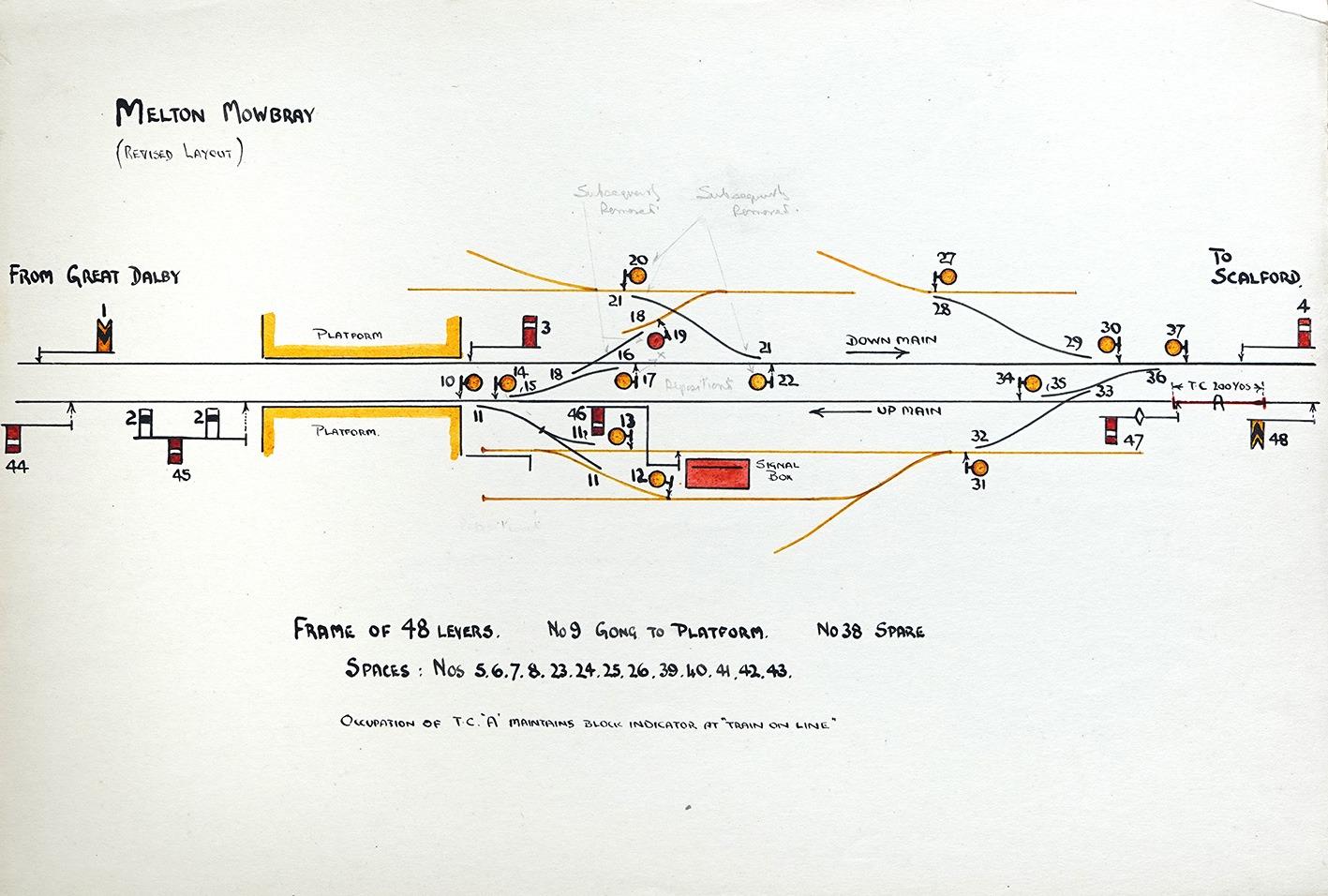

Melton Mowbray ex-GNR & LNWR Jt. Rly. Click here for a larger image

4) Diagram of an ex-Midland Railway Signal Box

Totley Tunnel East. This pencil outline is smaller than the others, 330 x 217 mm. It is dated 21.1.73 but carries an update of 1976. It appears to show how the signaling there was revised. Click here for a larger image

5) A Selection of Tables of Electrical Controls

East Leake. Click here for a larger image

Ruddington. Click here for a larger image

Table O fElectrical Controls-Bottesford West Junction

Bottesford West Junction. Click here for a larger image
